Jeep Transmissions: T-5

T-5 front T-5 side T-5 back


Jeep Trans

45RFE
46RE
44RE
42RE
46RH
32RH
30RH
AW4
AX-15
AX-5
BA10/5
T-5
TF727
909
999
904
T-4
SR-4
T-178
T-177
T-176
T-150
T-18
T-15
TH400
T-14
T-86
T-90
T-84

Jeep Trans

Upgrades
Factory Options
General


The T-5 is a light duty transmissions five speed transmission that looks very similar to the SR-4 and T-4, except for the buldge the shift lever housing for the overdrive. The T-5 also looks about 10% bigger all around than the 4 speeds. This transmission was manufactured by Borg-Warner and may say Ford on the top cover. The case is aluminum and has a casting numbers on the drivers side of 13-52. The T-5 has a 1 1/8" 10 spline input shaft and a 23 spine output shaft.

Usage

The T-5 was used in CJs from 1982 until 1986.

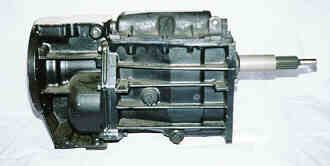

T-5 side T-5 passenger side
Transmission 1st 2nd 3rd 4th 5th Rev
T-5 4.03 2.37 1.50 1.00 0.86 3.76
