The Jeep Dana 20 is one of the most common transfercases
around. It's cast iron housing and all gear drive make
it strong, and the short tailshaft maximizes the length
of the rear driveshaft. It also hangs down at a less steep
an angle than a Dana 300, conserving valuable ground
clearance. The down side to this transfercase
is the 2.03:1 low range. A combination of gears from a
Jeep Dana 18 transfercase and an older Early Bronco Dana
20 put inside a Jeep Dana 20 case
can make for an almost painless conversion to a 2.46:1
low range.
The Numbers
Before I explain how to do the conversion I want to run
through some numbers to show why the conversion makes sense.
Take a look at these calculations for some common Jeep setups.
Transmission (1st gear)
|
Transfercase (low range)
|
axle gears
|
Crawl Ratio
|
T-150 (3:1) | Dana 20 (2.03:1) |
3.54 | 21:1 |
T-150 | Dana 20 (2.46:1) |
3.54 | 26:1 |
T-150 | Dana 20 (2.03:1) |
4.56 | 27:1 |
T-18 (6.32:1) | Dana 20 (2.03:1) |
3.54 | 45:1 |
T-18 | Dana 20 (2.46:1) |
3.54 | 55:1 |
T-18 | Dana 20 (2.03:1) |
4.56 | 58:1 |
T-18 | Dana 300 (2.62:1) |
3.54 | 58:1 |
As you can see changing from a 2.03:1 low range to a 2.46:1
low range has nearly the same effect as changing from 3.54
rear end gears to 4.56 gears, except that changing the
transfercase gearing doesn't affect highway usage. Going
to a 2.46 low range also yields nearly the same crawl ratio
as if a Dana 300 was swapped in place of the Dana 20. The
Dana 20 2.46 conversion should cost a lot less
than buying a rare Scout II Dana 300 with the 6 spline input gear or
buying an adapter for a T-18 to Jeep Dana 300. The Dana 20 or
Scout II Dana 300 will also yield a much longer rear driveshaft
than a T-18 adapted to a Jeep Dana 300.
Finding the gears
|

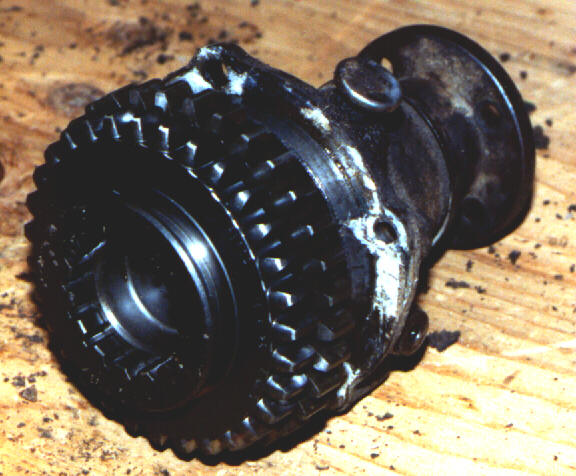

The desirable Early Bronco 33 tooth rear sliding gear is shown
here with the Jeep rear sliding gear in front of it.
|

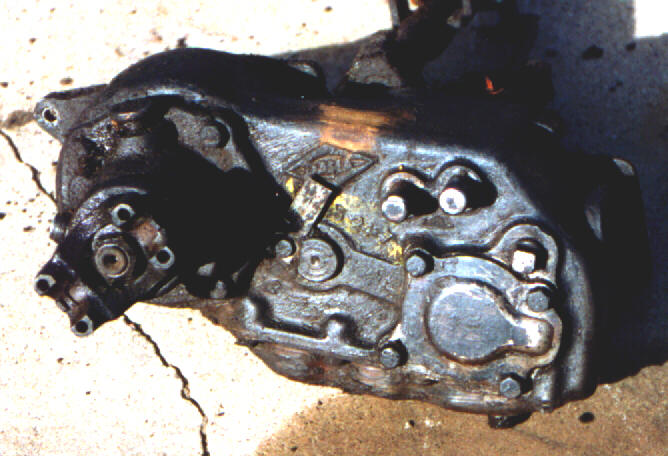

Jeep Dana 18 transfercases can be found for sale used for very
little money. You will want the later Dana 18 with the 1 1/4"
center shaft. Make sure you get the input gear along with the
transfercase because this will also need to be changed. It will
be a bonus of you can get the twin stick shifters from the Dana
18 because these can be adapted to a Dana 20 with a custom bracket
and linkages. Important note:
There were production changes throughout the life of the Dana 18.
Not all Dana 18 transfercases have the right gears. Count the
teeth on the gears to make sure you get the right transfercase.
Spicer gear numbers will be stamped into the gear, ignore any
cast in numbers.
gear | spicer # | tooth count |
input gear, helical cut | 18 8 23 | 29 |
high range output shaft gear, helical cut |
18 8 24 | 29 |
intermediate gear, both helical and straight cut |
18 5 9 | 18 straight teeth
39 helical teeth |
lower sliding gear, straight cut teeth | 18 8 22 | 33 |
Finding the right Early Bronco transfercase can be a little trickier.
Start by looking for one with the T style shifter pictured below.
Count the teeth on the rear output sliding gear and make sure it
has 33 straight cut teeth and the Spicer number is 18 8 58. This
gear is the only part you will need from the Bronco Dana 20.
Because you need only the one gear it may be possible to buy a
damaged or partly disassembled transfercase to save money.
|

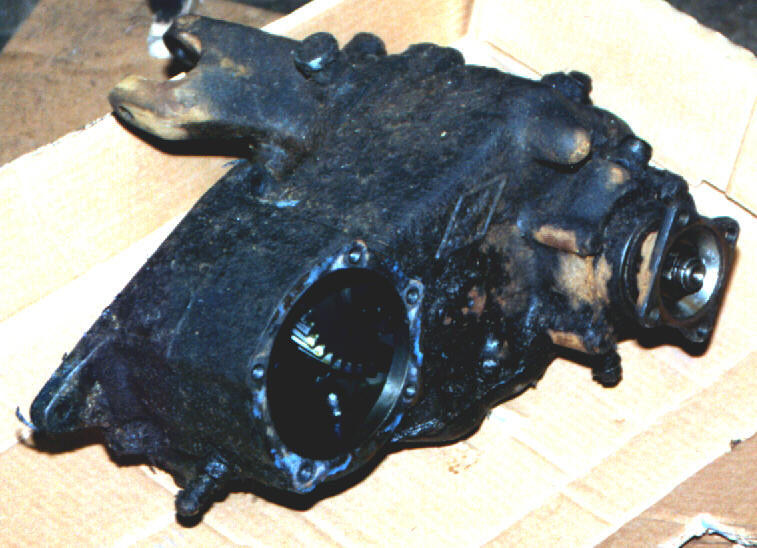

A partially disassembled Early Bronco Dana 20 with the T-style shifter.
|
gear | spicer # | tooth count |
Bronco upper sliding gear, straight cut teeth | 18 8 58 | 33 |
Putting it together
There are many manuals that detail how to disassemble and rebuild a
Dana 20, you will need one of these. The best manual is the factory
service manual for an Jeep CJ or full sized Jeep built between 1972
and 1979.
The main difference between this project and a stock Dana 20 rebuild is
that the case had to be ground slightly for gear clearance. The upper
and lower sliding gears in the 2.46 gear set are a bit larger than the
stock 2.03:1 gears, and the case was not cast to accommodate them.
Different Dana 20 cases will require different amounts of grinding.
When discussing their new 3.15 gear set for Dana 20s Mepco mentioned
that the Dana 20 cases from J-trucks seem to have needed less grinding.
I also used a J-truck Dana 20 case and found that the grinding required
amounted to little more than cleaning up casting flash. I have heard
from other sources that CJ Dana 20 cases may require more grinding,
but I can't substantiate that rumor through my own experience at this
point.
I used an air die grinder with a carbide bur and a 4 inch angle grinder
to do the grinding, and it went fairly quickly. I stopped during the
process several times to check for clearances and in the end I ground
more than I needed to just to be safe.

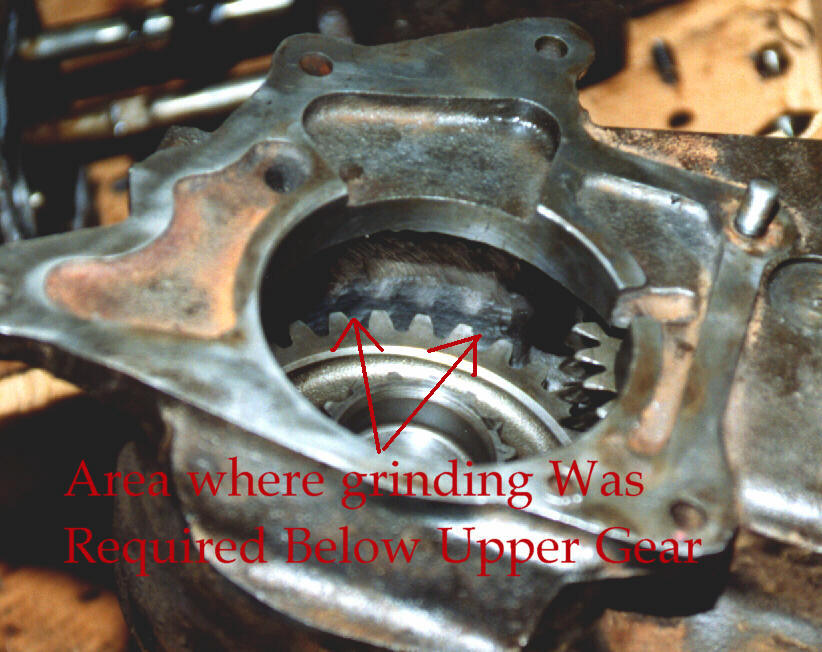

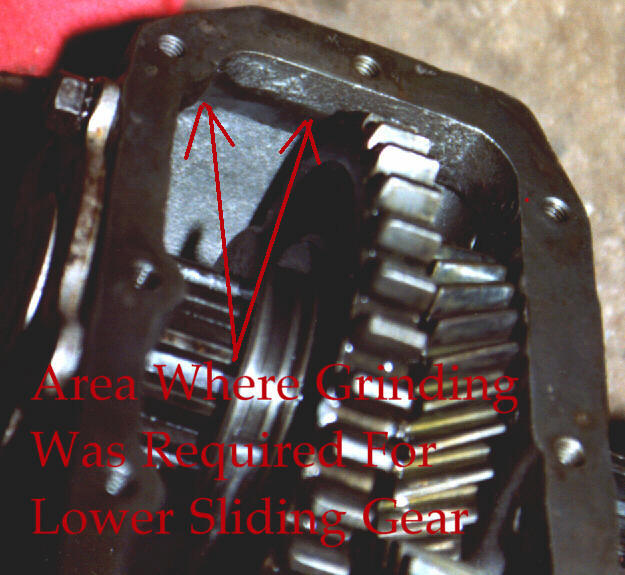

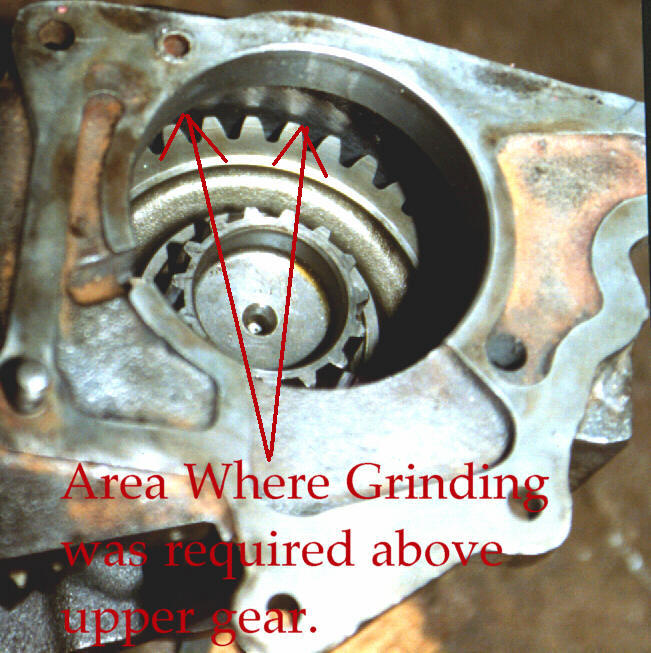

Here are some pictures that will give you an idea of how little grinding
was required. Grinding was required only directly above and below the
upper sliding gear and on the lip near the sheet metal cover for the
lower sliding gear.
All the stock Jeep Dana 20 components are used except
the gears. Except for the grinding the case is re-assembled as if
it were stock.
Conclusions
This gear swap can be accomplished for far less money than it would cost
to change axle gears or switch to a different type of transfercase.
The exact amount it will cost largely depends on how much you have to
pay for the rear sliding gear from the Early Bronco Dana 20. It is
possible to buy a damaged or partially disassembled Early Bronco Dana
20 and save a lot of money. The only component needed from the Bronco
transfercase is the sliding gear for the rear output, the condition of
the rest of the transfercase doesn't matter.
I believe this gear swap provides the most bang for the buck for any
Dana 20 equipped Jeep that needs a better crawl ratio, however the 3.15
gears from Mepco will offer a still lower ratio when they are released.
A do it yourself type of Jeeper who is good at finding cheap used parts
should be able to do this gear swap for a fraction of the cost of
switching from 3.54 to 4.56 axle gears, but in low range it has nearly
the same results as going to 4.56 gears. Swapping only transfercase
gears also leaves high range the same for good freeway cruising.
|
